Standardize access to observability data

The Keptn Lifecycle Toolkit (KLT) makes any Kubernetes deployment observable. You can readily see why a deployment takes so long or why it fails, even when using multiple deployment tools. Keptn introduces a concept of an application which is an abstraction that connects multiple Workloads belonging together. In other words, KLT, creates a distributed end-to-end trace of everything Kubernetes does in the context of a Deployment.

The observability data is an amalgamation of the following:

• DORA metrics are collected out of the box when the Lifecycle Toolkit is enabled
• OpenTelemetry runs traces that show everything that happens in the Kubernetes cluster and can display this information with dashboard tools such as Grafana.
• Specific metrics that you can define to monitor information from all the data providers configured in your cluster.

The Keptn Lifecycle Toolkit can provide this information for all applications running in your cluster, even if they are using different deployment tools. And it can capture metrics from multiple data sources using multiple data platforms. With KLT deployed on your cluster, you can easily monitor what is happening during a deployment into your Kuberenetes cluster, and quickly get data to help you understand issues such as why a deployment took so long or why it failed.

Using this exercise

This exercise shows how to standardize access to the observability data for your cluster. It is based on the simplenode-dev example. You can clone that repo to access it locally or just look at it for examples as you implement the functionality “from scratch” on your local Kubernetes deployment cluster. The README file for that repo contains useful information.

Two videos are available to walk you through this exercise if you prefer:

• Introducing Keptn Lifecycle Toolkit
• Use SLOs and get DORA the Native K8s way!

In the Getting started with Keptn metrics exercise, you learn how to define and use Keptn metrics. You may want to complete that exercise before doing this exercise although that is not required.

This exercise shows how to standardize access to the observability data for your cluster. The steps are:

1. Install and enable the Lifecycle Toolkit on your cluster
2. Integrate the Lifecycle Toolkit with your applications
3. DORA metrics
4. Using OpenTelemetry
5. Keptn metrics
6. View the results

Install and enable KLT

To install and enable the Keptn Lifecycle Toolkit on your cluster:

1. Be sure that your cluster includes the components discussed in Prepare your cluster for KLT

2. Follow the instructions in Install the Keptn Lifecycle Toolkit to install KLT on your cluster using the Helm chart

   If you installed KLT on your cluster for the Getting started with Keptn metrics exercise, you do not need to re-install it for this exercise. However, if you only installed the metrics-operator for that exercise, you now need to install the full KLT.

3. Follow the instructions in Enable KLT for your cluster to enable KLT on your cluster by annotating the Namespace resource.. See the simplenode-dev-ns.yaml file for an example

4. Run the following command to ensure that your Kuberetes cluster is ready to complete this exercise:

   kubectl get pods -n keptn-lifecycle-toolkit-system


   You should see pods for the following components:

   • certificate-operator (or another cert manager)
   • lifecycle-operator
   • scheduler
   • metrics-operator

Integrate the Lifecycle Toolkit with your applications

The Keptn Lifecycle Toolkit sits in the scheduler so it can trace all activities of all deployment workloads on the cluster, no matter what tool is used for the deployment. This same mechanism allows KLT to inject pre- and post-deployment checks into all deployment workloads; we discuss this in another exercise.

KLT uses metadata to identify the workloads of interest. To integrate KLT with your applications, you need to populate the metadata it needs. This requires the following steps:

• Define a Keptn application
• Annotate the Deployment resource to recognize your Keptn application

Define the Keptn application

A Keptn application defines the workloads to be included in your Keptn Application. We will use the application discovery feature to automatically generate a Keptn Application that includes all workloads on the cluster, regardless of the tools being used.

A Keptn application aggregates multiple workloads that belong to a logical app into a single KeptnApp resource.

You can view a sample of this file in the keptn-app.yaml file. You see the metadata that names this KeptnApp and identifies the namespace where it lives:

metadata:
  name: simpleapp
  namespace: simplenode-dev

You can also see the spec.workloads list. In this simple example, we only have one workload defined but most production apps will have multiple workloads defined.

You can create the YAML file to define the resource manually but the easier approach is to let KLT create this definition for you. This requires that you annotate all your workloads (Deployments, Pods, StatefulSets, DaemonSets, and ReplicaSets as described in Use Keptn automatic app discovery.

Annotate your Deployment resource

Follow the instructions in Annotate workload to apply basic annotations to your Deployment resource.

The simplenode-dev-deployment.yaml file defines the Deployment resource for our example. You see that the metadata specifies the same name and namespace values defined in the KeptnApp resource.

The example file also includes annotations for pre- and post-deployment activities. We will discuss those in a separate exercise.

DORA metrics

DORA metrics are an industry-standard set of measurements; see the following for a description:

• What are DORA Metrics and Why Do They Matter?
• Are you an Elite DevOps Performer? Find out with the Four Keys Project

DORA metrics provide information such as:

• How many deployments happened in the last six hours?
• Time between deployments
• Deployment time between versions
• Average time between versions.

The Keptn Lifecycle Toolkit starts collecting these metrics as soon as you annotate the Deployment resource. Metrics are collected only for the Deployment resources that are annotated.

To view DORA metrics, run the following command:

kubectl port-forward -n keptn-lifecycle-toolkit-system \
   svc/lifecycle-operator-metrics-service 2222

Then view the metrics at:

http://localhost:2222/metrics

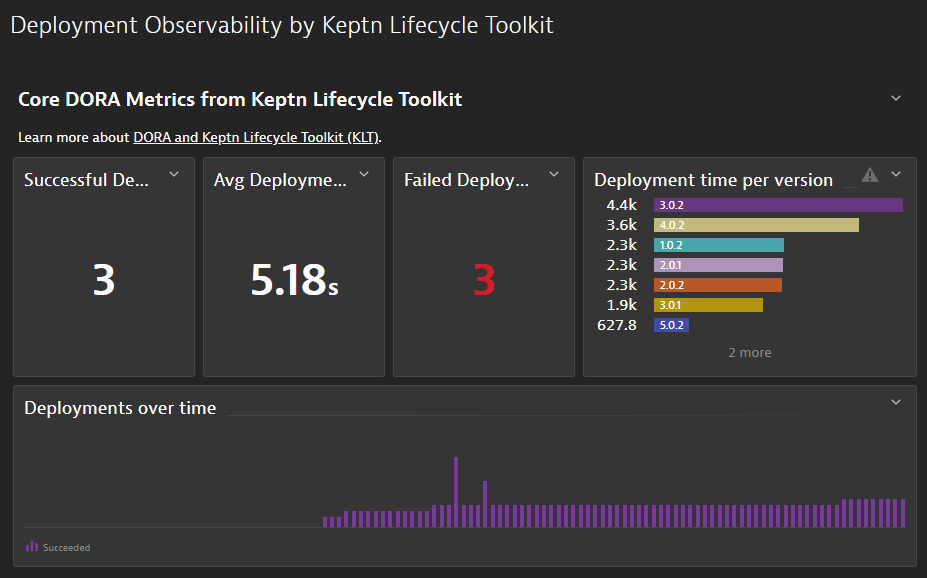

DORA metrics are also displayed on Grafana or whatever dashboard application you choose. For example:

Using OpenTelemetry

The Keptn Lifecycle Toolkit extends the Kubernetes primitives to create OpenTelemetry data that connects all your deployment and observability tools without worrying about where it is stored and where it is managed. OpenTelemetry traces collect data as Kubernetes is deploying the changes, which allows you to trace everything done in the context of that deployment.

• You must have an OpenTelemetry collector installed on your cluster. See OpenTelemetry Collector for more information.
• Follow the instructions in OpenTelemetry observability to configure where your OpenTelemetry data is sent.
  • Define a KeptnConfig resource that defines the URL and port of the OpenTelemetry collector. For our example, this is in the keptnconfig.yaml file.
• Set the EXPOSE_KEPTN_METRICS environment variable in the metrics-operator

TODO: How to set this env variable in metrics-operator or where is it set in the example?

Keptn metrics

You can supplement the DORA Metrics and OpenTelemetry information with information you explicitly define using Keptn metrics. The Getting started with Keptn metrics exercise discusses how to define Keptn metrics.

View the results

To start feeding observability data for your deployments onto a dashboard of your choice, modify either your Deployment or KeptnApp resource yaml file to increment the version number and commit that change to your repository. Note that, from the KeptnApp YAML file, you can either increment the version number of the application (which causes all workloads to be rerun and produce observability data) or you can increment the version number of a single workload, (which causes just that workload to be rerun and produce data).

The videos that go with this exercise show how the DORA, OpenTelemetry, and Keptn metrics information appears on a Grafana dashboard with Jaeger.

If you also have Jaeger extension for Grafana installed on your cluster, you can view full end-to-end trace for everything that happens in your deployment. For more information, see Monitoring Jaeger.
